Duke Pro Law Enforcement Products

Some things last forever...

The patented igniter tips that have been used in the design of these shock tube initiators are guaranteed to last 10,000 shots or we'll fix it free .   All of our law enforcement products are guaranteed to last forever and are covered by our No-Nonsense Guarantee

Duke Pro make a series of robot mounted shock tube initiators for use with various EOD robots.

  • Includes mounting brackets for Remotec Andros robot.
  • Connect to weapons output ports and you're
    ready for years of reliable shock tube initiation.
  • Six patented switch tips included with the
    ESI/RM6, four with the ESI/RM4.
  • Each switch tip is good for 10,000 shots.
  • Owner's Manual (PDF 87k)
  • Switch Tip Owner's Manual (PDF 218k)

Quick Links


ESI/RM1 & ESI/RM2

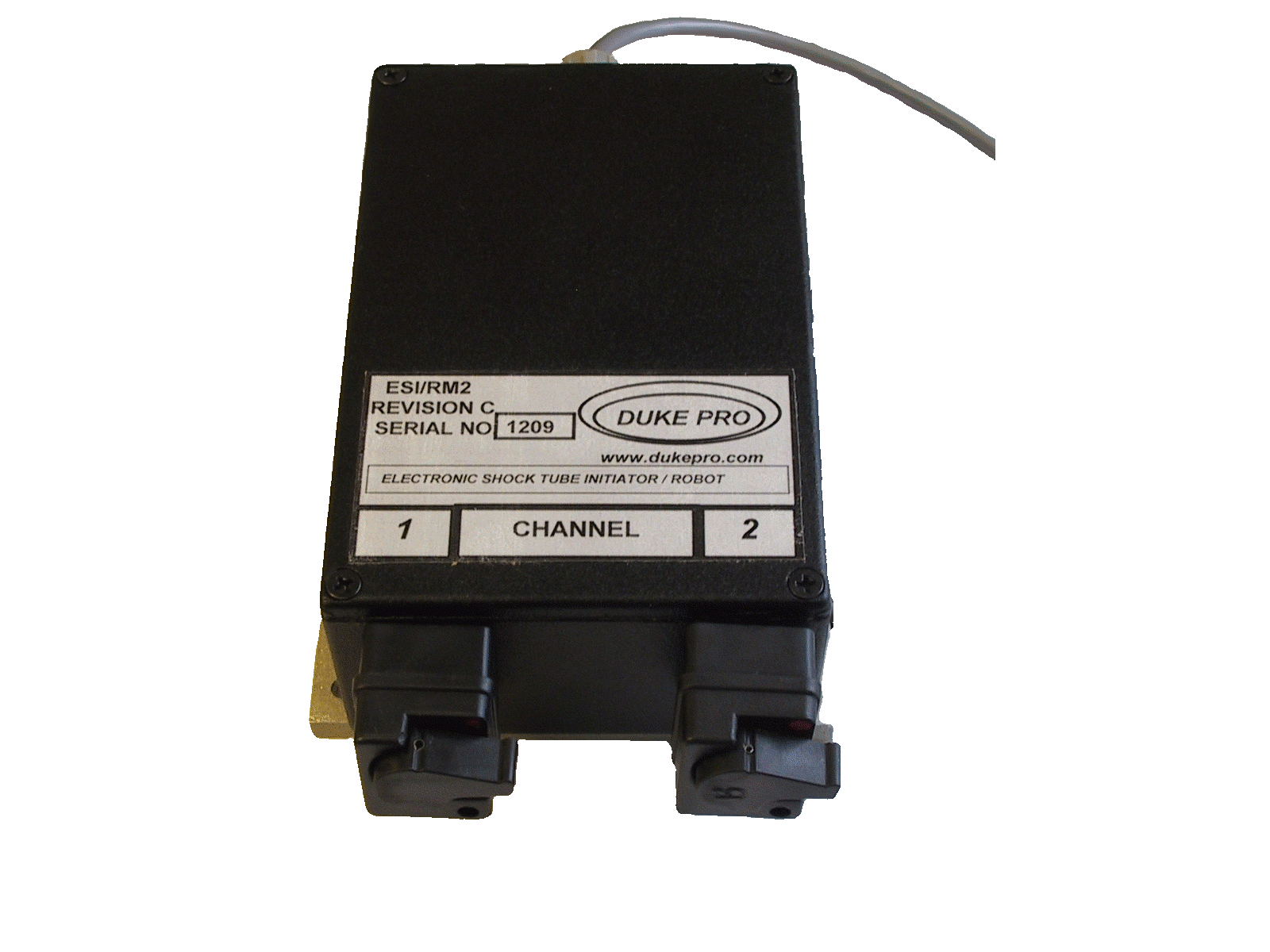

Photo of ESI/RM2
(Click to enlarge)

The ESI/RM2 is a 2-channel shock tube initiator designed to be mounted on and powered by an EOD robot.

The ESI/RM1 has all the same features and specifications as the ESI/RM2, except that it provides one initiator channel.

Specifications
Approvals Certified by USAF Nonnuclear Munitions Safety Board (NNMSB) for USAF EOD operational use. USAF log number: 04-2-8
U.S. Navy Certified to MIL-STD-461E.
Weight ESI/RM1: 1 lb
ESI/RM2: 1.1 lbs
Size 5.7" x 3.7" x 2.0"
Operating Temperature -40°C to +85°C
Power Requirements 18 - 30VDC, 300mA for 3 seconds
Ordering Information
(Click for pricing)
ESI/RM1 Single channel initiator. 43" cables, standard mounting kit
ESI/RM1-M Single channel initiator. 43" cables, mounting kit for Remotec's Andros Mini-II robot.
ESI/RM1-W Single channel initiator. 52" cables, standard mounting kit
ESI/RM1-PB Single channel initiator. 4" cables, mounting kit for I-Robot PackBot
ESI/RM2 Two channel initiator. 43" cables, standard mounting kit
ESI/RM2-M Two channel initiator. 43" cables, mounting kit for Remotec's Andros Mini-II robot.
ESI/RM2-V Two channel initiator. 12" cables, mounting kit for Vanguard MK-II.
ESI/RM2-W Two channel initiator. 52" cables, standard mounting kit

ESI/RM4 Series

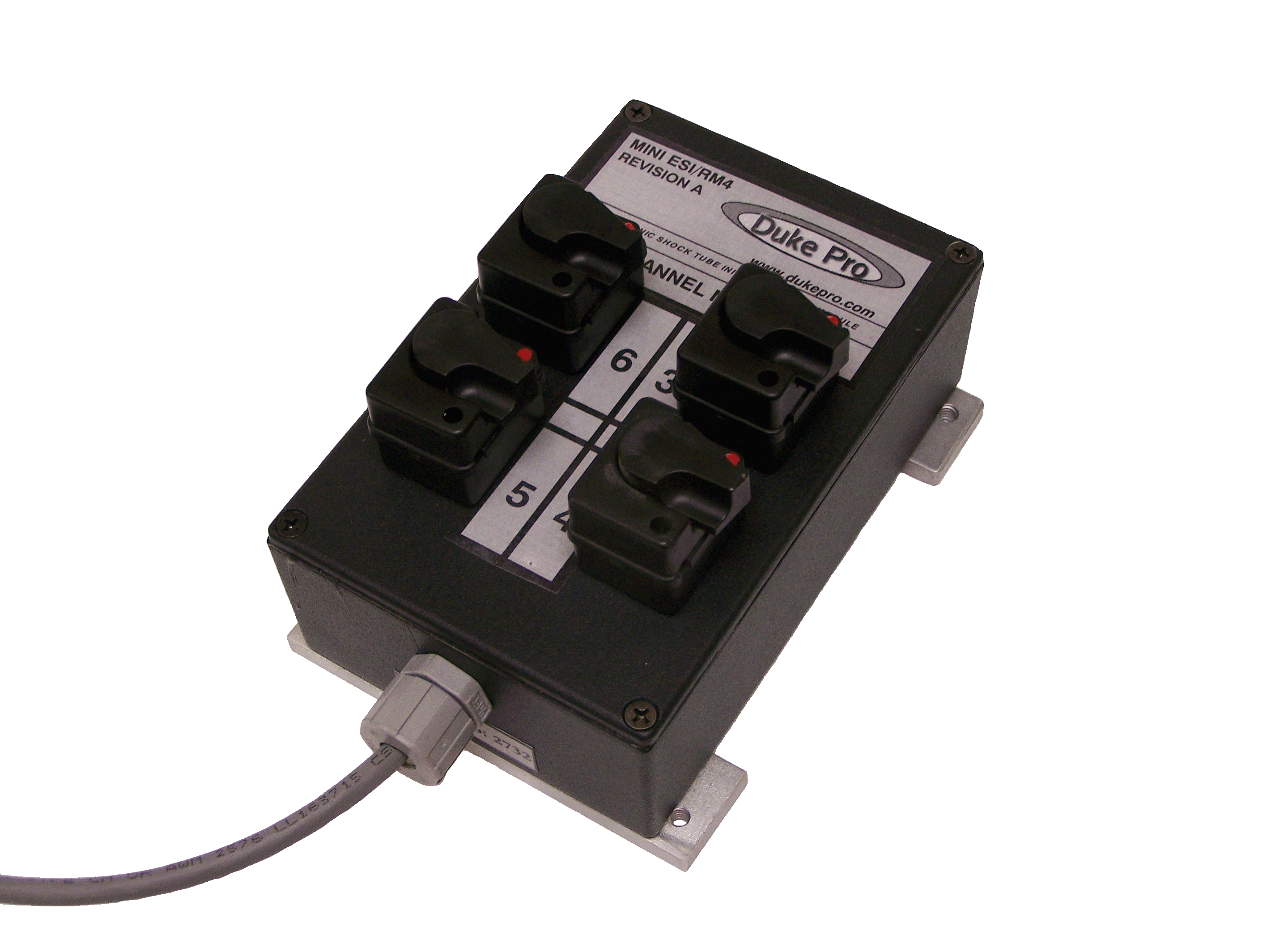

Photo of ESI/RM4-HD
(Click to enlarge)
The ESI/RM4 series is a small 4-channel shock tube initiator designed to be mounted on and powered by an EOD robot.

The included standard mounting kit will mount on a 3"x3" arm. The ESI/RM4-HD has a mounting configuration designed to mount on Remotec's HD-1.

Specifications
Approvals Certified by USAF Nonnuclear Munitions Safety Board (NNMSB) for USAF EOD operational use. USAF log number: 04-2-8
U.S. Navy Certified to MIL-STD-461E
Weight 1.2 lbs
Size 5.7" x 3.7" x 2.0"
Operating Temperature -40°C to +85°C
Power Requirements 18 - 30VDC, 300mA for 3 seconds

Ordering Information
(Click for pricing)
ESI/RM4 4-channel initiator. 43" cable (Ch 1 & 2), 25" (Chs 3 - 4), standard mounting kit
ESI/RM4-W 4-channel initiator. 60" cable (Ch 1 & 2), 36" (Chs 3 - 4), standard mounting kit
ESI/RM4-HD 4-channel initiator. 36" cable numbered channels 3 - 6, standard mounting kit

ESI/RM6
Photo of ESI/RM6
(Click to enlarge)

The ESI/RM6 is a 6-channel shock tube initiator designed to be mounted on and powered by an EOD robot.

Specifications
Approvals Certified by USAF Nonnuclear Munitions Safety Board (NNMSB) for USAF EOD operational use. USAF log number: 04-2-8
U.S. Navy Certified to MIL-STD-461E
Weight 5.7 lbs
Size 9.5" x 4.8" x 4.8"
Operating Temperature -40°C to +85°C
Power Requirements 18 - 30VDC, 300mA for 3 seconds
Ordering Information
(Click for pricing)
ESI/RM6 6-channel initiator. 43" cable (Ch 1 & 2), 25" (Chs 3 - 6), standard mounting kit
ESI/RM6-W 6-channel initiator. 60" cable (Ch 1 & 2), 36" (Chs 3 - 6), standard mounting kit

Other Photos

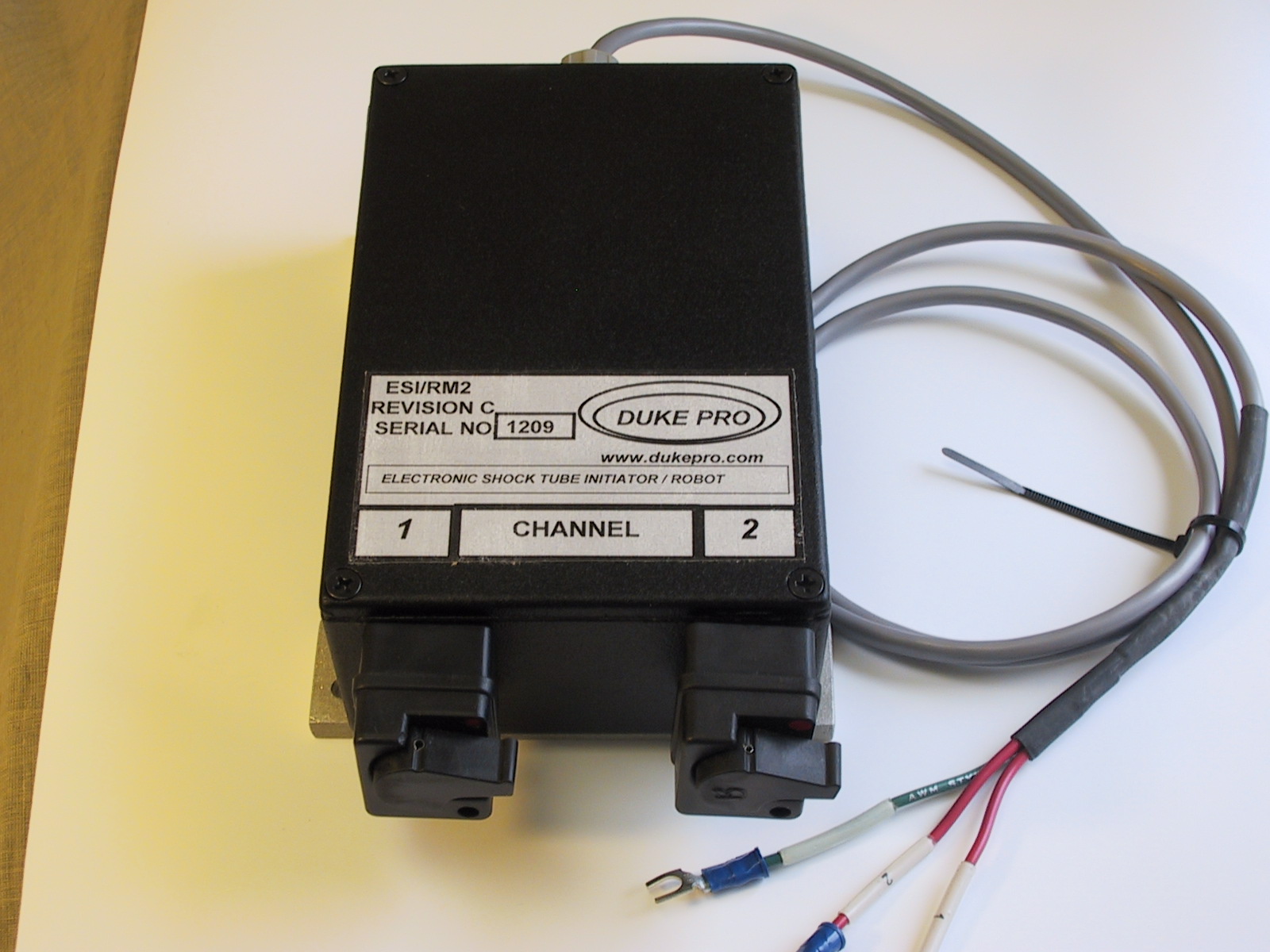

Closeup of the two-channel ESI/RM2
Weight: 1 lb
Size: 5.7" x 3.7" x 2.0"
Operating Temperature: -40°C to +85°C
(Click on image for larger view.)
Closeup view of the six-channel ESI/RM6.
(Click on image for a larger view.)
ESI/RM6 mounted on F6A

ESI/RM6 mounted on F6A

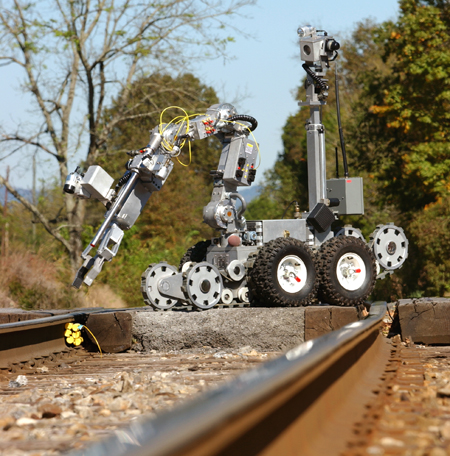

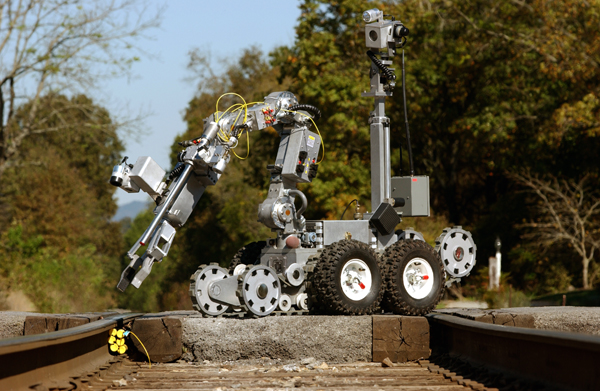

A six-channel ESI/RM6 mounted on a Remotec Andros robot.
(Click on image for larger view.)
